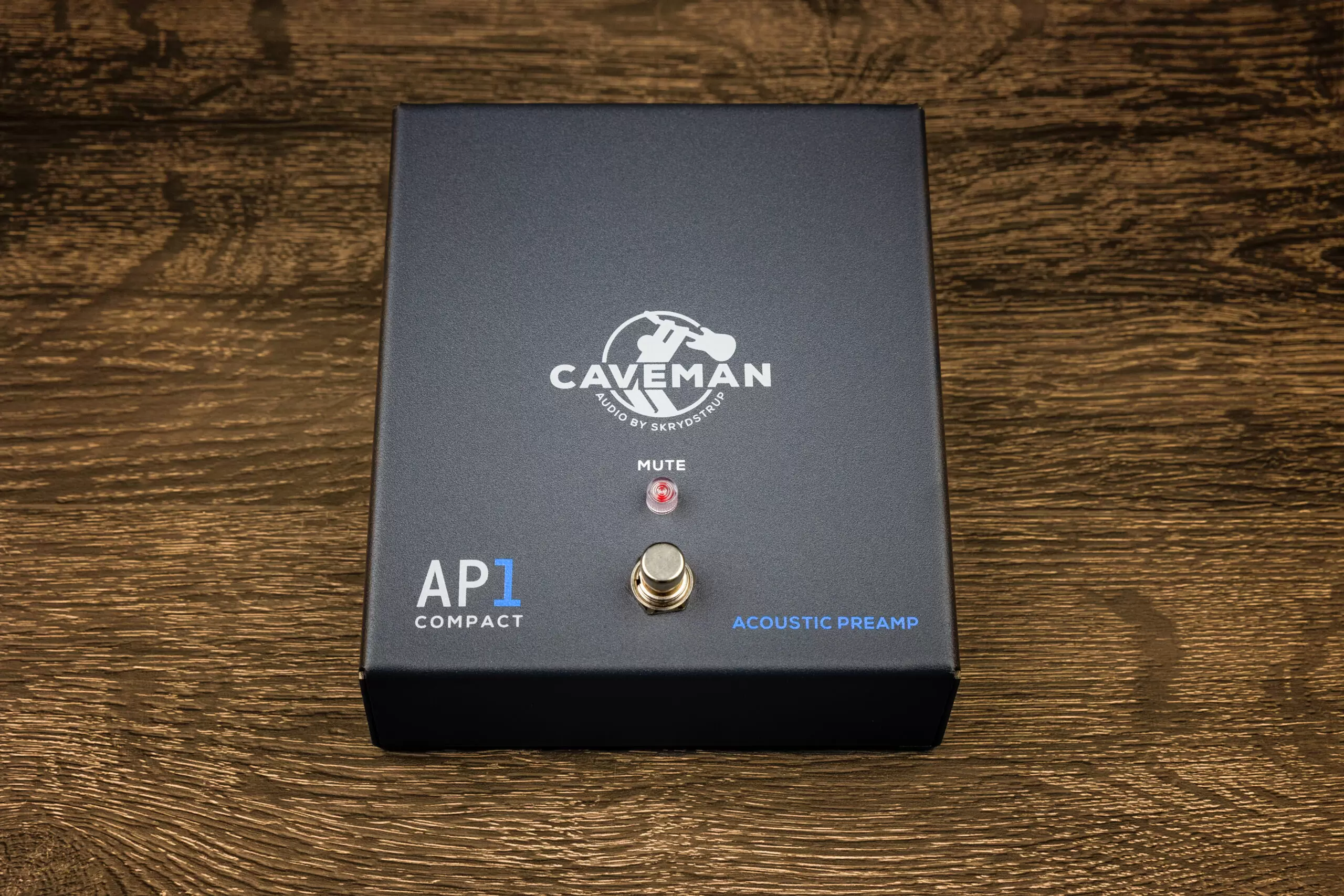

The AP1 Compact sounds exactly like our renowned AP1 Acoustic Preamp. But it has a much smaller footprint, making it even more pedalboard-friendly.
In short, we have focused on the basic features that acoustic guitar players require: An amazing-sounding preamp, Tuner Out, and transformer-balanced DI Out for your FOH engineer, who will be very happy with the signal you provide from your AP1 Compact.
The pedal is designed for low voltages and will accept 9-18VDC.
Whether you use piezo pickups or Sound-hole microphones, AP1 Compact will make your guitar sound the way it was meant to.
The DI features the exact same preamp design and custom-made audio transformer as the AP1.
Input Impedance5MΩ
Output Load D.I.2kΩ or more
Output Load
Amp Out2kΩ or more
Dim. Metric 130 x 145 x 40/65 mm (WxHxD)
Weight1 kg / 2 lbs. 3 oz.
Power9-18VDC @ 100mA – center negative
